100mm-200mm Diameters Baghouse Filter Cages For Coal Fired Boiler Dust Bags

  • 1
  • 2

Brand Name : Sinft

Model Number : Filter Bag Cage

Certification : ISO 9001

Place of Origin : China

MOQ : 100

Price : ￥100-500/piece

Payment Terms : Plywood case, wooden pallet or as your require.

Supply Ability : 500 per day

Delivery Time : 7-15 work days

Packaging Details : 15000Piece

Product name : Baghouse Filter Cages With High Temperature Resistant Coating For Coal Fired Boiler Dust Bags

Material : Galvanized Steel

Color : Silver

Shape : Round type,Oval type,Special-shaped

Vertical line : 6，8, 10, 12, 14, 16, 20, 24

Ring spacing : 4”, 6"， 8”

Length : 5-12 Meter，Common Lengths: 6' - 12'

Venturi : Customizable

Surface Treatment : Plastic spray, epoxy coating, stainless steel

key words : Baghouse Filter Cages

Contact Now

Baghouse Filter Cages With High Temperature Resistant Coating For Coal Fired Boiler Dust Bags



The function of aghouse Filter Cages:

The Baghouse Filter Cages is also called the dust collector skeleton or simply the skeleton. It is one of the most important accessories of the bag filter. The existence of the Baghouse Filter Cages can effectively avoid the adhesion of the dust removal bag and ensure the dust removal effect. Sinft not only pays attention to the quality of the main products, but also all kinds of dust removal accessories are excellent products. The company selects high-quality raw materials and advanced processing equipment, so that the exterior and interior of the skeleton can guarantee high quality. It is installed in the bag filter together with the dust bag, and it is used in different industries and plays a role that cannot be ignored.



100mm-200mm Diameters Baghouse Filter Cages For Coal Fired Boiler Dust Bags



Baghouse Filter Cages Features:
1. Lightweight, smooth, straight and strong;
2. There is no welding flash or burr at the welding place;
3. Corrosion resistance and high temperature resistance;
4. Easy to install and maintain;
5. Long service life.



Specifications

Types: Round Style/Flat Style/Envelope Style/ Special Style
Number Of Wires: 8/10/12/16/20/24 vertical wires(usually)
Ring Space: Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
Cage Diameter: Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness: Wire thickness ranges are 2mm to 5mm
Material: Carbon Stee, Galvanized Steel, Stainless Steel
Finishment: Epoxy, PVC vinyl coating
Packaging: Cages are packed in custom designed cartons
Usage: Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.
Advantages: 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel
4. economical maintenance(almost no Maintenance required)
5.prominent effect in removing dust from Filter by pulsing 6.easy to install
7.no ventury installation required





Standard Technical Data



Round Style Diameter(mm) Bag Diameter(mm) Length(mm)
115 120 2000,2400 2800,
3200,3600,4000,
125 130 4400,4800,5200,
147 152 560,060,007,000
195 200
Flat Style Perimeter Bag Perimeter Length(mm)
800 800 2000 3000 4000
5000 6000
900 900
Envelope Style Length Width Thickness Bag Length Width Thickness
1500X750x25mm 1500X750x25mm



Why choose us?

1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.

2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.

3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.

4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.

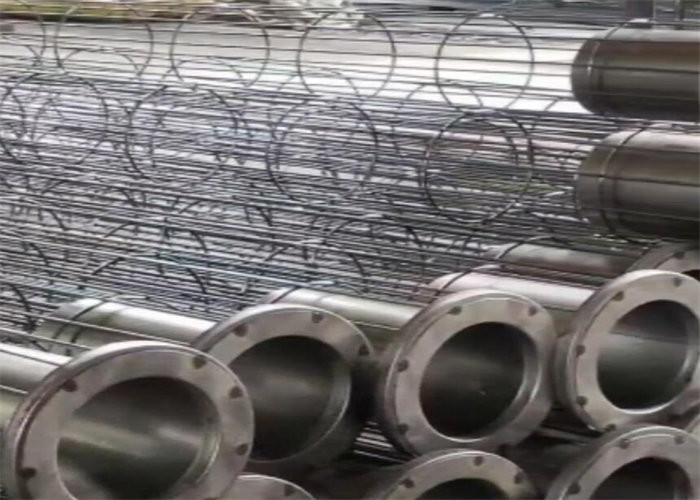

Filter Bag Cage Production Process:



100mm-200mm Diameters Baghouse Filter Cages For Coal Fired Boiler Dust Bags


Our factory:

100mm-200mm Diameters Baghouse Filter Cages For Coal Fired Boiler Dust Bags

100mm-200mm Diameters Baghouse Filter Cages For Coal Fired Boiler Dust Bags



Our Certificate:



100mm-200mm Diameters Baghouse Filter Cages For Coal Fired Boiler Dust Bags



More details, pls feel free to contact us, Thanks
