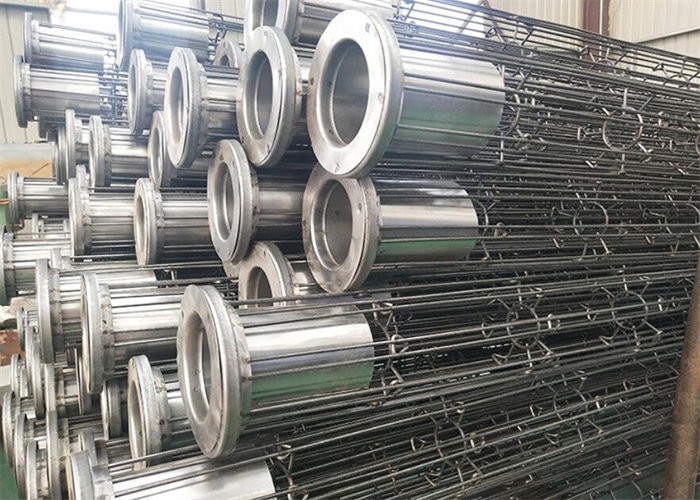

High Temperature Resistant Carbon Steel Multi-Section High Temperature Resistant Dust Collector Filter Cage
The function of filter bag cage:
Dust collector filter cage advantages:
1. Surface treatment: All welding points must be firm, and there should be no de-soldering, mis-soldering, or missing welding; the surface of the dust removal skeleton in contact with the filter bag should be smooth, without welding scars, unevenness, and burrs.
2. Working principle: The dust removal frame plays an important role and role in actual use. It can correctly grasp and play a role according to a certain form and situation, adapt to changes in the market, fully display a certain trend and role, and can well grasp and play a role in the dust removal work according to the market situation.
3. Applicable conditions: The dust removal frame is used for dust management of industrial boilers and thermal power station boilers of various types and combustion methods. The dust removal frame has large air volume, strong load adaptability, smooth and durable ceramic movement, no blockage, and small footprint. It can be installed flexibly according to the user's site conditions and local conditions, and can be placed indoors or in the open air. It is easy to install and requires little maintenance.
4. Ventilation effect: To prevent condensation, the gas temperature in the dust collector frame and its system must be 25-35°C higher than its dew point to ensure the good use of the filter bag. When choosing a bag cage diameter, it should be as small as possible. If the air volume to be passed is large, several small-diameter cyclone separators can be used in parallel; if the air volume is consistent with the dust removal frame, a multi-tube dust collector should be selected.
Galvanizing process:
The Dust Collector Filter Cage adopts galvanized technology, and the coating is firm, wear-resistant and corrosion-resistant, which avoids the rust on the surface of the skeleton and the adhesion of the filter bag after the dust collector works for a period of time, ensures the smooth change of the dust filter bag, and reduces the damage to the bag during the bag change process. . Features of dust removal framework The flow pattern design of the shell cyclone dust collector can act as a local cyclone and reduce the load of the filter bag. The shape of the cylindrical vault, the force is average, and the anti-explosion performance is good.
| Goods Name | Standard | Description | Goods Name | Standard | Description |
| Clamps | φ180 | | Spring curb | 120*2 | Normal quenching steel belt |
| φ230 | 130*2 |
| φ250 | 150*2 |
| φ260 | 200*2 |
| φ292 | 292*2 |
| φ300 | 300*2 |
| Hoop | φ160 | φ300-φ270 using wire rod ofφ4.2 | 120*2.5 |
| φ170 | 130*2.5 |
| φ180 | 150*2.5 |
| φ200 | 182*2.5 |
| φ210 | 202*1.3 | Quenching stainless steel belt |
| φ250 | φ180 using wire rod of φ3.3 | 127*1.5 |
| φ260 | 127*1.9 | If it is highly corrosive, we can use titanium curb |
| φ280 | 130*2.5 |
| φ292 | φ260-φ180 using wire rod of φ3.8 | 150*2.5 |
| φ300 | 129.6*2.5 |
| φ400 | 280*2 |
| φ615 | Pendant chain device | Hung huang, pendant chain | |
| Cap | 180 | upper cap lower cap |
| 200 |
| 230 | Venturi tube | Carbon steel |
| 250 | Aluminum |
| 292 | Stainless steel |
| 300 | Unifying covering cap and venturi tube(integration) |
| Filter cage | Material: hard-drawn wire | Galvanization treatment | Normal | Yellow |
| White zinc plated treatment | High quality | Light silver |
| Organic silicon treatment | | Black |
| Material: stainless steel | 201-316L | | |
| Any special requirement and production can be processed according to buyer’s sample(with |
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
