Acid Resistance Oil Repellent Waste -To -Energy Indsutry Dust Filter Bags
Dust Filter Bag :

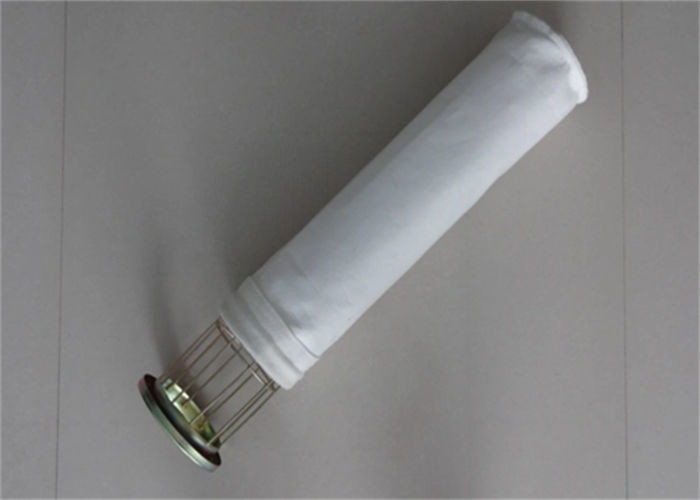

In pulse and air box pulse dust collectors, the dust is attached to the outer surface of the filter bag. When the dusty gas passes through the dust collector, the dust is trapped on the outer surface of the filter bag, while the clean gas enters the inside of the bag through the filter media. The cage inside the filter bag is used to support the bag and prevent the bag from collapsing, while it helps to remove and redistribute the dust cake and eliminate dust from occurring.
The diameter of the filter bag is 110-200mm, length is 2000 - 10000mm
Filter bags can be constructed in Various thicknessess to fit your application. Media can beAcrylic, Aramid or Nomex, Ryton or PPS, Polyester, PE, PTFE, P84.
Dust Filter Bag material: Low Temp Filter Bag Media and High Temp Filter Bag Media.
Low Temp Filter Bag Media:
| Media | Relative Cost | Max Continuous Operating Temperature | Abrasion | Energy Absorpsion | Filtration Properties | Moist Heat | Alkaline | Mineral Acids | Oxygen (15%+) |
| Polyester | $ | 275 Degrees F. | Excellent | Excellent | Excellent | Poor | Fair | Fair | Excellent |
| Polypropylene | $ | 170 Degrees F. | Excellent | Good | Good | Excellent | Excellent | Excellent | Excellent |
| Acrylic | $$ | 265 Degrees F. | Good | Good | Good | Excellent | Fair | Good | Excellent |
High Temp Filter Bag Media:
| Media | Relative Cost | Max Continuous Operating Temperature | Abrasion | Energy Absorpsion | Filtration Properties | Moist Heat | Alkaline | Mineral Acids | Oxygen (15%+) |
| Nomex | $$$ | 400 Degrees F. | Good | Good | Excellent | Good | Good | Fair | Excellent |
| Fiberglass | $$$$ | 500 Degrees F. | Fair | Fair | Fair | Excellet | Fair | Poor | Excellent |
| PPS | $$$$$ | 375 Degrees F. | Good | Good | Good | Good | Excellent | Excellent | Poor |
| P84 | $$$$$$ | 500 Degrees F. | Fair | Good | Excellent | Good | Fair | Good | Excellent |
| PTFE | $$$$$$$ | 500 Degrees F. | Good | Good | Fair | Excellent | Excellent | Excellent | Excellent |
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the fabric
from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
