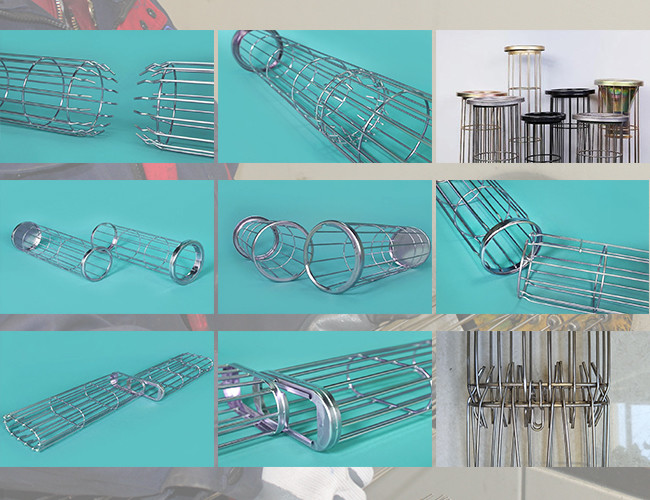

Filter Bag Cage for Round Or Oval with coating for Pulse Jet Bag Filter
The function of filter bag cage:
Filter Bag cage structure and composition Introduction: Pulse jet baghouses use fabric filter bags with an internal support structure, commonly referred to as cages or baskets. The basket keeps the filter bag open during collection, providing the necessary support for the filter bag. Our baskets are manufactured with high craftsmanship to ensure durability and high performance.
Filter bag cage is an accessory of pulse bag filter. It is formed by one-time welding with special equipment, and has the characteristics of firm welding and smooth and straight appearance.
The filter bag cage is an important part of the dust collector. It is the "rib" of the dust filter bag. It should be light and easy to install and maintain. The quality of the filter cage directly affects the filter state and service life of the filter bag. The key to the dust collector is to clean the dust, and the cleaning effect determines the success or failure of the dust bag cage and even the entire dust collector.
Galvanized treatment dust collector filter bag cage Filter bag cage production:Strong, wear-resistant and corrosion-resistant coating
Avoid the corrosion of the skeleton surface and the adhesion of the filter bag after the dust collector runs for a period of time, which will damage the bag.
To ensure smooth bag replacement, while reducing damage to the bag during the replacement process.
Increase usage time and reduce downtime.
Applications:
Power Stations,Filtered dust,Flue ash, discharging flue ash
Coal dust,Building and Construction,Cement, furnace dust, gypsum, limestone, finely ground quartz,Calcium hydroxide, lead monoxide, quicklime, acid crystals,Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum,Chemical Industry,Thomas meal (Fertilizer),Rubber compounds, sinter dust, catalysts,Sodium sulfate,Soap powder
| Specifications |
| |
| Types: | Round Style/Flat Style/Envelope Style/ Special Style |
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) |
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) |
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) |
| Wire thickness: | Wire thickness ranges are 2mm to 5mm |
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel |
| Finishment: | Epoxy, PVC vinyl coating |
| Packaging: | Cages are packed in custom designed cartons |
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. |
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel |
| 4. economical maintenance(almost no Maintenance required) |
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install |
| 7.no ventury installation required |
| |
| Standard Technical Data |
| |
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, |
| 3200,3600,4000, |
| 125 | 130 | 4400,4800,5200, |
| 147 | 152 | 560,060,007,000 |
| 195 | 200 | |
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 |
| 5000 6000 |
| 900 | 900 | |
| Envelope Style | Length Width Thickness | Bag Length Width Thickness |
| 1500X750x25mm | 1500X750x25mm |
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
