Customizable Venturi Carbon Steel Filter Bag Frame For Cement Packer

Hebei Sinft Filter Co., Ltd.
Contact Now

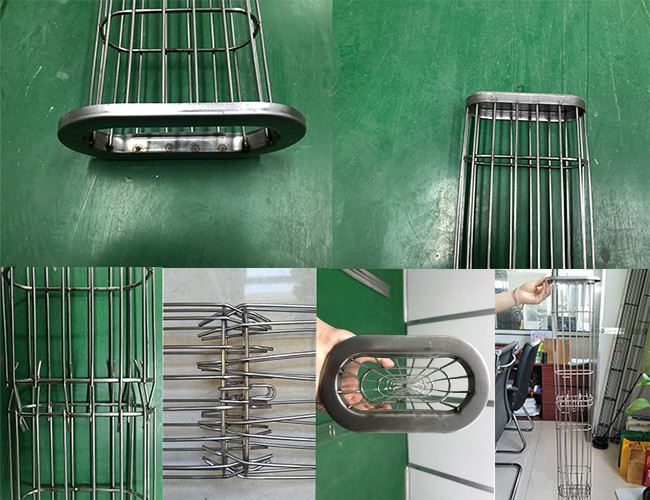

Customizable Venturi Carbon Steel Filter Bag Frame For Cement Packer

  • 1
  • 2
  • 3

Brand Name : Sinft

Model Number : Filter Bag Cage

Certification : ISO 9001

Place of Origin : China

MOQ : 100

Price : ¥100-500/piece

Payment Terms : Plywood case, wooden pallet or as your require.

Supply Ability : 500 per day

Delivery Time : 7-15 work days

Packaging Details : 15000Piece

Product name : Easy Installment Carbon Steel Filter Bag Cage For Cement Packer

Material : Carbon Steel

Color : Silver

Shape : Round type,Oval type,Special-shaped

Vertical line : 6,8, 10, 12, 14, 16, 20, 24

Ring spacing : 4”, 6", 8”

Length : 5-12 Meter,Common Lengths: 6' - 12'

Venturi : Customizable

Surface Treatment : Plastic spray, epoxy coating, stainless steel

key words : Carbon Steel Filter Bag Cage

Contact Now

Easy Installment Carbon Steel Filter Bag Cage For Cement Packer



The function of filter bag cage:

The dust filter bag cage, also known as the filter bag frame, has sufficient strength, verticality, and dimensional accuracy, all welding points are firm, and there is no de-soldering, virtual welding, and missing welding; the contact surface between the dust collector cage and the filter bag is smooth, and dust removal The surface of the filter bag cage is electroplated or painted.



Customizable Venturi Carbon Steel Filter Bag Frame For Cement Packer



The silicone

The silicone cage is usually the rib of the filter bag. It should be light and easy to install and maintain. The quality of the cage directly affects the filter state and service life of the filter bag. The dust removal cage is also called the dust removal frame. :The welding is firm, the appearance is smooth and straight. The dust removal cage is the rib of the dust removal bag, which is an important part of the dust collector. The quality of the dust removal cage directly affects the working state and service life of the filter bag.



Applications:Mine industry.
Medicine industry
Plastic, food industry.
Coal fired power stations.
Steel power station.
Cement industry.
Paper industry.
Building and construction industry.
Other industrial segments.



Customizable Venturi Carbon Steel Filter Bag Frame For Cement Packer

Specifications

Types: Round Style/Flat Style/Envelope Style/ Special Style
Number Of Wires: 8/10/12/16/20/24 vertical wires(usually)
Ring Space: Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
Cage Diameter: Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness: Wire thickness ranges are 2mm to 5mm
Material: Carbon Stee, Galvanized Steel, Stainless Steel
Finishment: Epoxy, PVC vinyl coating
Packaging: Cages are packed in custom designed cartons
Usage: Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.
Advantages: 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel
4. economical maintenance(almost no Maintenance required)
5.prominent effect in removing dust from Filter by pulsing 6.easy to install
7.no ventury installation required

Standard Technical Data

Round Style Diameter(mm) Bag Diameter(mm) Length(mm)
115 120 2000,2400 2800,
3200,3600,4000,
125 130 4400,4800,5200,
147 152 560,060,007,000
195 200
Flat Style Perimeter Bag Perimeter Length(mm)
800 800 2000 3000 4000
5000 6000
900 900
Envelope Style Length Width Thickness Bag Length Width Thickness
1500X750x25mm 1500X750x25mm



Customizable Venturi Carbon Steel Filter Bag Frame For Cement Packer

Why choose us?

1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.

2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.

3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.

4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.



Filter Bag Cage Production Process:



Customizable Venturi Carbon Steel Filter Bag Frame For Cement Packer


Our factory:

Customizable Venturi Carbon Steel Filter Bag Frame For Cement Packer

Customizable Venturi Carbon Steel Filter Bag Frame For Cement Packer



Our Certificate:



Customizable Venturi Carbon Steel Filter Bag Frame For Cement Packer



More details, pls feel free to contact us, Thanks
