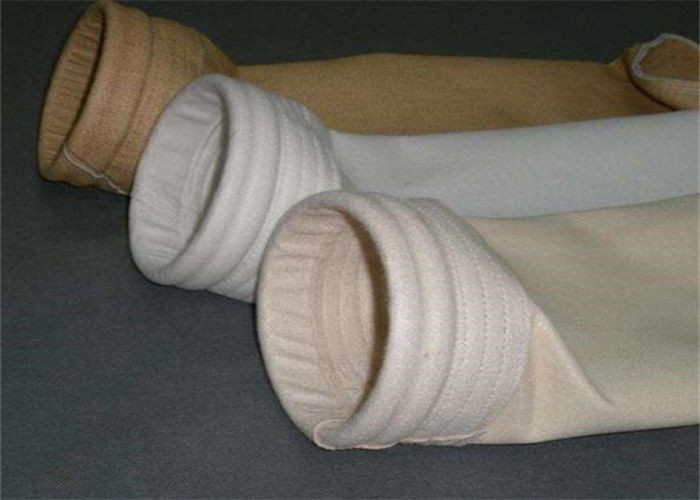

133*3000mm Power Plant High Temperature Dust Collector PPS Filter Bag
The PTFE PPS dust collector filter bag is used in working conditions where typical PPS filter media can't be used. This dust collection bag features a high dust collection efficiency, low smoke resistance, high corrosion resistance, high oxidation resistance, high filtration accuracy, low emission, high stability and long life.
PPS performance in the following applications:
1, working temperature 180℃, instant 200℃, limit nutrient index 34-35.
2. The oxygen content is below 15%.
3. Sulfur oxides in flue gas.
4. The dust-containing gas in the flue gas is wet
Specifications
| Name | Polyester Filter Felt | Polyester Filter Felt
(Oil and water repellent) | PPS/PTFE
Filter Felt | PPS Filter Felt |
| Material | Fiber | PPS/M-Fiberglass | PPS/M-Fiberglass | PPS/PTFE fiber | PPS Fiber |
| Scrim | PPS | Glass Fiber | PTFE | PPS |
| Weight | g/m³ | 550±20 | 850±20 | 580±20 | 550 |
| Thickness | mm | 2.0±0.2 | 3.0±0.2 | 1.8±0.2 | 1.9±0.1 |
| Air Permeability | m³/㎡.min.200pa | 18-28 | 15-40 | 10-18 | 12-18 |
| Breaking Strength(N/5cm) | Warp | ≥1000 | ≥2600 | ≥1000 | ≥800 |
| Weft | ≥1100 | ≥2700 | ≥1200 | ≥1200 |
| Elongation@50N(%) | Warp | ≤30 | ≤10 | ≤30 | ≤25 |
| Weft | ≤50 | ≤10 | ≤45 | ≤40 |
Service
Temperature(℃) | Continuous℃ | 160-190 | ≤210 | ≤190 | ≤160 |
| Instant℃ | 210 | 150 | 210 | 190 |
| Finishing | Singeing,Calendaring
PTFE Coating | Singeing,Calendaring
PTFE Coating | Singeing,Calendaring
PTFE Coating | Singeing
Calendaring |
Filter Bag Applicant:
Asphalt Plants,Cement Mills,Incinerators,coal-fired thermal power plants, ash factories, and fly dust filters in large dust filtration systems.

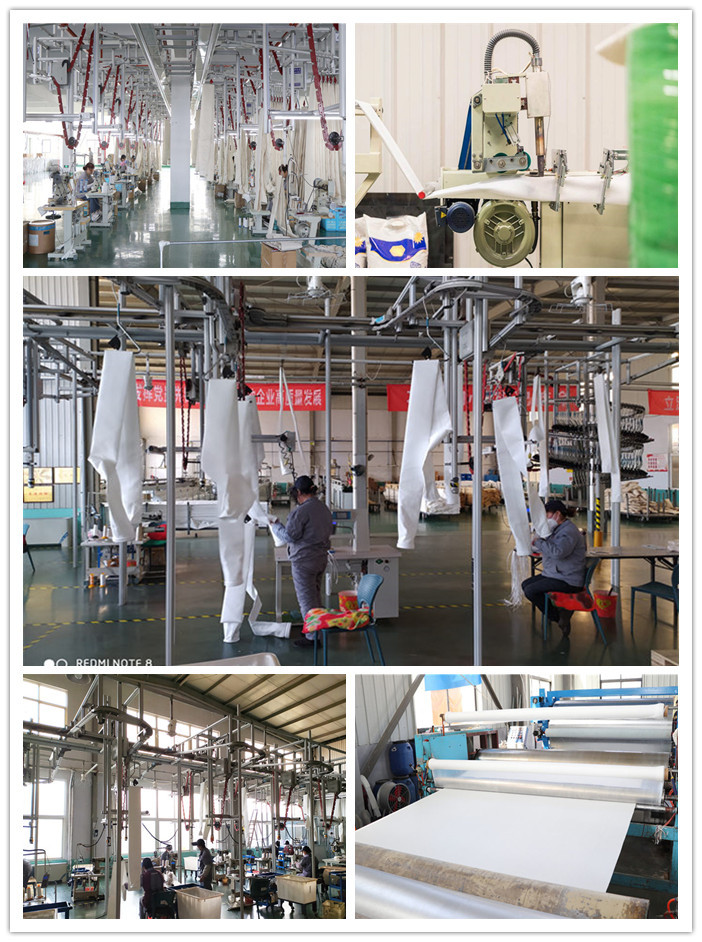

Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the fabric from
shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.

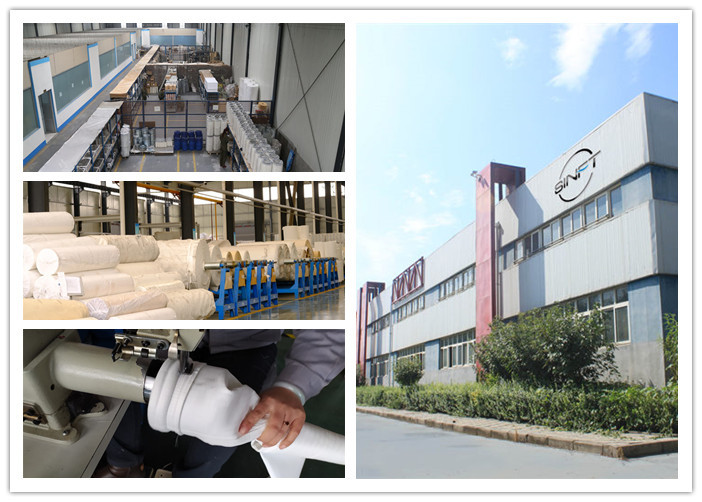

Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
Product Tags:
|
|
Power Plant High Temperature Dust Collector PPS Filter Bag 133x3000mm Images
|
